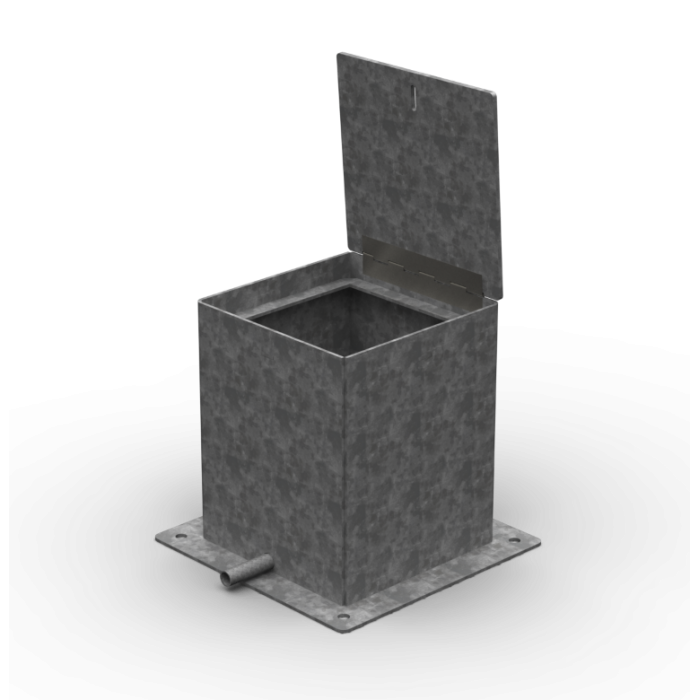

Type 04 Ground Socket – For Wooden Bollards

Engineered for strength, reliability, and seamless integration with timber bollards, the Type 04 Ground Socket from Larkin Engineering is purpose-built to accommodate 200mm x 200mm timber bollards such as Oak or Spruce. Designed with a padlock-secured hinged lid, this above-ground socket ensures quick removal or access while maintaining visual consistency in heritage and parkland environments.

Dimensions:

• Socket Opening: 200mm x 200mm

• Height : 300mm

• Width : 330mm

• Body Thickness: 4mm mild steel

• Base Plate: 6mm mild steel

• Drainage Tube: 19mm diameter for water removal

• Lid Type: Piano-hinged (198mm length) with padlock eyelet

Features:

• Designed specifically to suit timber bollards

• Lockable hinged lid for security and access

• Fully hot-dip galvanised for corrosion protection

• Drainage tube to avoid water accumulation inside the socket

• Reinforced with lock strap and wood screws for secure bollard installation

• Suitable for parks, public realms, pedestrianised heritage zones

Material & Finish:

• Mild Steel Body: Hot dip galvanised (standard)

• Galvanised Lid with Piano Hinge

Fixing Method:

• Submergible (set into concrete)

• Locking mechanism designed for padlock compatibility

Optional:

• Compatible with both flat and pyramid top timber bollards
