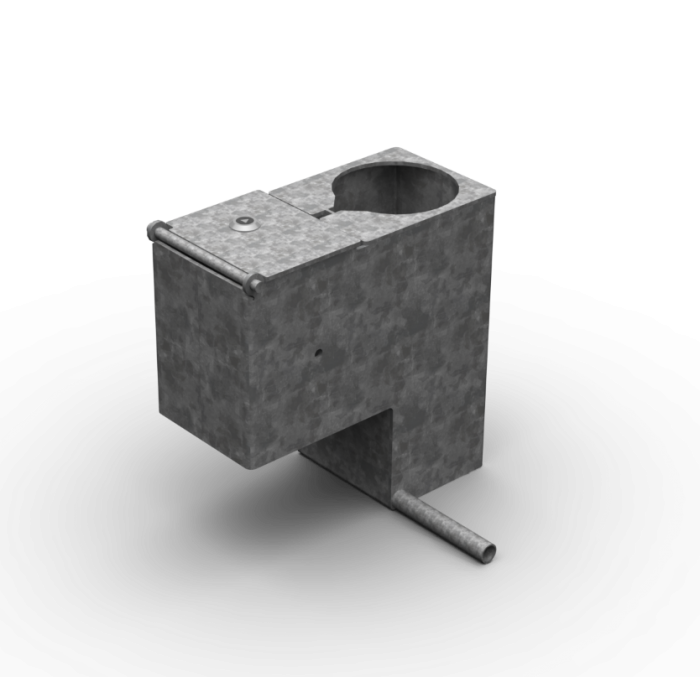

Type 01 Ground Socket

Secure. Subtle. Standardised for Strength.

The Type 01 Ground Socket by Larkin Engineering is designed to provide a safe and lockable base for removable bollards or street furniture installations. Engineered for durability and ease of use, this socket features a below-ground locking system, a water drain pipe, and hot-dip galvanised mild steel construction for long service life in public realms.

Dimensions (Approx.):

• Height: 300 mm

• Width: 140 mm

• Body: 4 mm mild steel plate

• Compatible with standard Larkin bollards and other insertable fittings

• Designed to suit bollards with various diameters: 89mm, 101mm, 114mm, and others upon request

Material & Finish Options:

• Body: Hot dipped galvanised mild steel

• Lid: Marine-grade stainless steel 316 (for compatibility with stainless steel bollards)

• Finish: Lid flush with ground level; galvanised or coated to match installation site

• Colour Option: Coated to any RAL colour (upon request)

Fixing Options:

• Submergible installation

• Designed for in-ground concrete foundations

• Built-in drainage pipe for water egress

Optional Features:

• Compatible with removable and lockable bollards

• Tamper-resistant internal lock design

• Flush-fit cover plate prevents tripping hazards

Applications:

• Urban and commercial zones

• Parks and pedestrian streets

• Car parks, event spaces, civic plazas
