Shelter. Structure. Simplicity.

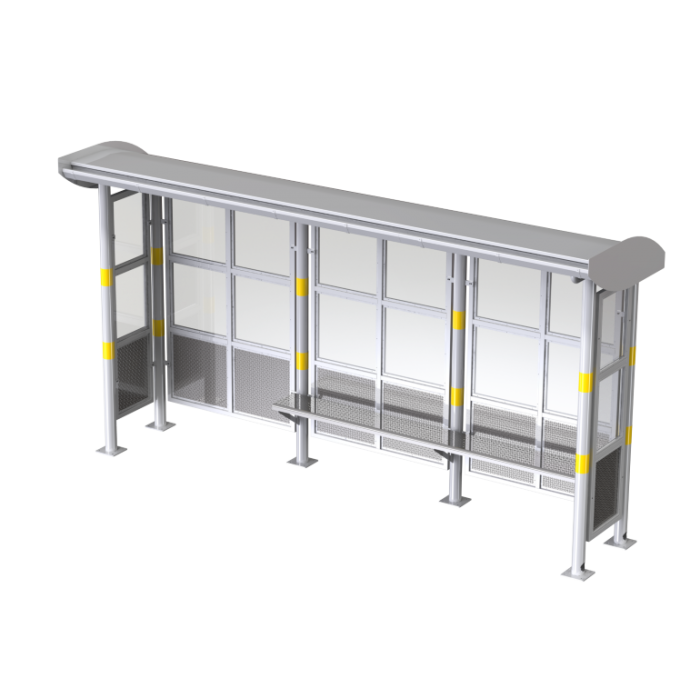

The Half Platform Shelter by Larkin Engineering is designed for everyday resilience. Crafted with a hot-dip galvanised mild steel frame and rigidized SS316 lower panels, complemented by 3mm clear polycarbonate upper panels, this open-sided shelter delivers clarity and durability to rail transit zones. With clean geometry, a RAL 9003 roof, and RAL 7038 body, it enhances both urban and regional platforms.
Key Specifications:
• Modular Size Options:
Standard length: 4800mm, customizable to suit footfall and space requirements
Configurable layout to adapt to platform needs
• Construction:
• Roof & Panels:
1.5mm pre-galvanised mild steel roof with 2mm mild steel gulleys, painted RAL 9003; 2.5-inch downpipes on left side, rainwater exiting inside uprights with outlet below finished floor level, painted RAL 7038
3mm clear polycarbonate upper panels and rigidized SS316 lower panels in mild steel frames, frames painted RAL 7038
• Seating:
Custom Options Available: Modular layout, custom RAL colours, integrated lighting, signage, or branding—adapt the shelter to your project’s needs.
The Half Platform Shelter brings reliable protection and sharp design to every platform. Adaptable in configuration, bold in function, and built for the rhythm of rail travel.
